CY Last discount 6FT Network Routers FTDI USB RS232 to RJ45 Console Cable For Cisco Router ZTE Ethernet switches Cables 1.8m 5m
Original price US $18.00, Discount 5%. Sale price US $17.10
Buy yazarak product sale usb rs232, Buy Quality ftdi usb rs232 directly from China console cable Suppliers: 6FT Network Routers FTDI USB RS232 to RJ45 Console Cable For Cisco Router ZTE Router Ethernet switches Cables 1.8m 5m
Enjoy Free Shipping Worldwide! Limited Time SaleEasy Return.
6FT Network Routers FTDI USB RS232 to RJ45 Console Cable For Cisco Router ZTE Router Ethernet switches Cables 1.8m 5m

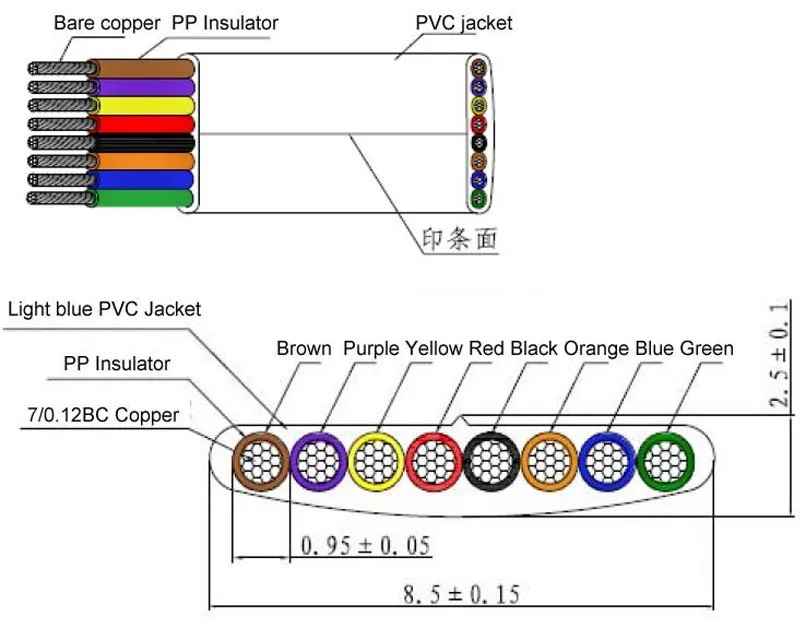

1. USB2.0, USB1.1 compatible 2. USB RS232 serial console cable 3. USB serial COM port to RJ45 male for router setting and controlling 4. FT232+ZT213 chip 5. Flat cable, 28AWG*8 core, bare copper. 1.8m 6. This cable need to install FTDI USB RS232 drivers for different OS, without the driver, the computer could not recognize the cable as a standard COM port. 7. Support Android, Support Win 8, Win 7, XP, 2000, Linix, Mac OS 8. Support Windows 8.1, Windows 8, 32bit or 64bit. 9. Support EEPROM, support Vendor ID re-write,support Mprog3.5 10. Support FTDI VCP driver and D2XX driver 11. Upgrading for cisco db9 RJ45 console cable 12. PE bag for each. 13. CE, RoHS compliance
This console cable is for updating DB9 to RJ45 cable, you can reference the following DB9-RJ45 cable information:

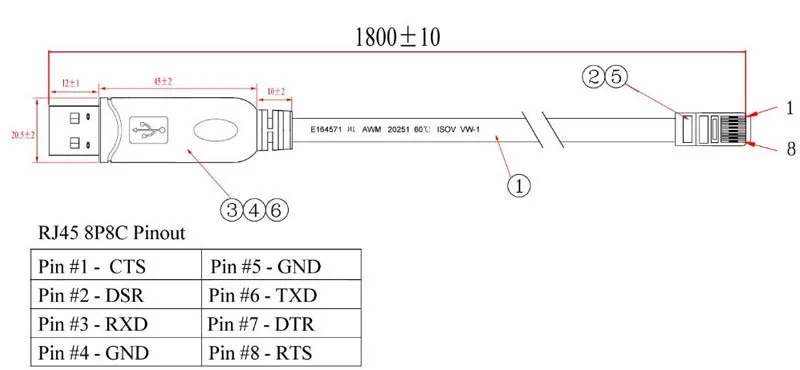

The standard formerly known as RS-232 or RS232 became EIA-232 then TIA-232. Most of the world still calls it RS232 but many names are used RS-232D or EIA-561 defines the pin assignments for using RS-232 with RJ45 connectors.For an RJ45 male connector, the one you'll find at both ends of a Cat6 cable, pin 1 is the left most pin when you look at the connector with the tab up and the cable going away from you. It's easier to buzz out a cable with the tab down, in which case pin 1 is on the right, thus leading to a lot of potential confusion.For the DB9 female connector pin 1 is the top right and pin 6 is the bottom right when you look at the connector with the cable going away from you and the side with five pins on top. At this point it's probably good to mention that you only need three lines to have a functional cable. You'll need RD, TD and ground. All the other lines are used by software to control data. The three critical lines are handled by hardware. But most of us don't write the software at both ends, so it may wait forever for a signal transition that will never happen.
Supported Operating System of USB RS232 RJ45 console cable:
Drivers are available which allow USB FTDI devices to work with the following operating systems: 1. For Windows 8 x32 2. For Windows 8 x64 3. For Windows Server 2008 R2 x64 4. For Windows 7 x32 5. For Windows 7 x64 6. For Windows Server 2008 7. For Windows Server 2008 x64 8. For Windows Vista x32 9. For Windows Vista x64 10. For Windows Server 2003 x32 11. For Windows Server 2003 x64 12. For Windows XP x32 13. For Windows XP x64 14. For Windows ME 15. For Windows 98 16. For Linux 17. For Mac OS X 18. For Mac OS 9 19. For Mac OS 8
